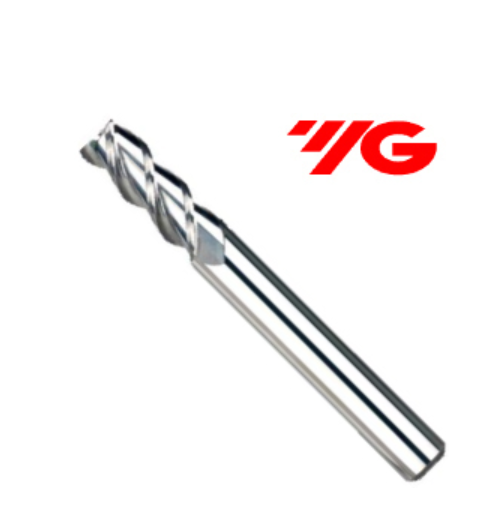

MŨI PHAY NHÔM 3 ME CỔ DÀI (Corner) E5D72
Nhóm sản phẩm: Mũi phay nhôm YG-1
5
Giá: Liên hệ
0.000 VNĐ
Số lượng:
.png)

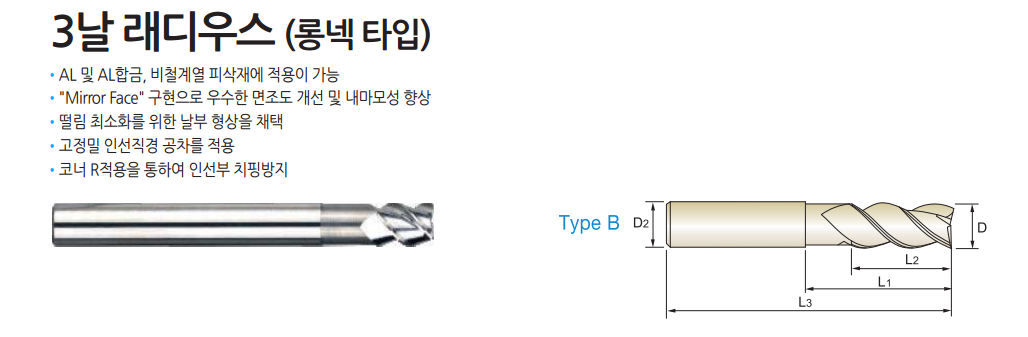

| Brand/EDP No. | DESCRIPTION | DIMENSION |
| E5D72010 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 1(R0.1)X6X3X50 |
| E5D72015 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 1.5(R0.1)X6X5X50 |
| E5D72020 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 2(R0.1)X6X6X50 |
| E5D72025 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 2.5(R0.2)X6X10X50 |
| E5D72030 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 3(R0.2)X6X11X55 |
| E5D72040 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 4(R0.2)X6X13X55 |
| E5D72050 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 5(R0.2)X6X17X55 |
| E5D72060 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 6(R0.3)X6X17X60 |
| E5D72080 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 8(R0.3)X8X22X70 |
| E5D72100 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 10(R0.3)X10X27X75 |
| E5D72120 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 12(R0.5)X12X32X80 |
| E5D72140 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 14(R0.5)X16X37X90 |
| E5D72160 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 16(R0.5)X16X42X100 |
| E5D72180 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 18(R0.5)X16X48X100 |
| E5D72200 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 20(R0.5)X20X48X100 |
| E5D7206005 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 6(R0.5)X6X10(20)X70 |
| E5D7206010 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 6(R1)X6X10(20)X70 |
| E5D7208005 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 8(R0.5)X8X12(25)X80 |
| E5D7208010 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 8(R1)X8X12(25)X80 |
| E5D7208020 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 8(R2)X8X12(25)X80 |
| E5D7208030 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 8(R3)X8X12(25)X80 |
| E5D7210005 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 10(R0.5)X10X15(30)X100 |
| E5D7210010 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 10(R1)X10X15(30)X100 |
| E5D7210020 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 10(R2)X10X15(30)X100 |
| E5D7210030 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 10(R3)X10X15(30)X100 |
| E5D7212005 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 12(R0.5)X12X20(35)X110 |
| E5D7212010 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 12(R1)X12X20(35)X110 |
| E5D7212020 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 12(R2)X12X20(35)X110 |
| E5D7212030 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 12(R3)X12X20(35)X110 |
| E5D7212040 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 12(R4)X12X20(35)X110 |
| E5D7216010 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 16(R1)X16X25(50)X130 |
| E5D7216020 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 16(R2)X16X25(50)X130 |
| E5D7216030 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 16(R3)X16X25(50)X130 |
| E5D7216040 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 16(R4)X16X25(50)X130 |
| E5D7216050 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 16(R5)X16X25(50)X130 |
| E5D7220010 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 20(R1)X20X30(60)X150 |
| E5D7220020 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 20(R2)X20X30(60)X150 |
| E5D7220030 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 20(R3)X20X30(60)X150 |
| E5D7220040 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 20(R4)X20X30(60)X150 |
| E5D7220050 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 20(R5)X20X30(60)X150 |
