MŨI DOA TAT XOẮN YG- SERIE K1153
Nhóm sản phẩm: Mũi doa YG-1
5
Giá: Liên hệ
0.000 VNĐ
Reamer :
Số lượng:
Giới thiệu sản phẩm
▶O.D. Tolerances : DIN 1420, H7
▶Shank Diameter ≒Nominal Reamer Diameter
▶LH Spiral Flutes / Right Hand Cut
▶Chamfer Angle - tapered
▶ Type of center - Up to Ø3.75 : external centers - Over Ø3.75 : internal centers
▶O.D. Tolerances : DIN 1420, H7
▶Shank Diameter ≒Nominal Reamer Diameter
▶LH Spiral Flutes / Right Hand Cut
▶Chamfer Angle - tapered
▶ Type of center - Up to Ø3.75 : external centers - Over Ø3.75 : internal centers

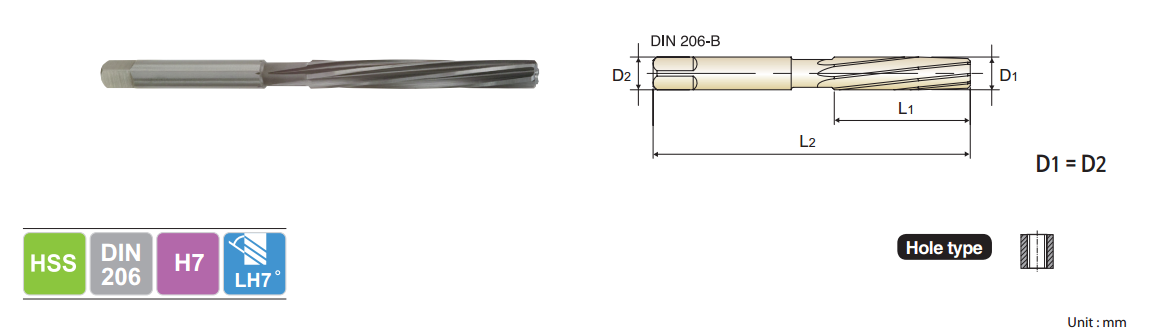

.png)
Bạn có thể tải tài liệu Tại Đây
| STT | MÃ HÀNG | MIÊU TẢ | KÍCH THƯỚC |
| 1 |
K115300150
|
HSS LH7° HAND RM | 1.5X1.5X20X41 |
| 2 | K115300200 | HSS LH7° HAND RM | 2X2X25X50 |
| 3 | K115300220 | HSS LH7° HAND RM | 2.2X2.2X27X54 |
| 4 | K115300240 | HSS LH7° HAND RM | 2.4X2.4X29X58 |
| 5 | K115300250 | HSS LH7° HAND RM | 2.5X2.5X29X58 |
| 6 | K115300270 | HSS LH7° HAND RM | 2.7X2.7X31X62 |
| 7 | K115300280 | HSS LH7° HAND RM | 2.8X2.8X31X62 |
| 8 | K115300300 | HSS LH7° HAND RM | 3X3X31X62 |
| 9 | K115300320 | HSS LH7° HAND RM | 3.2X3.2X33X66 |
| 10 | K115300340 | HSS LH7° HAND RM | 3.4X3.4X35X71 |
| 11 | K115300350 | HSS LH7° HAND RM | 3.5X3.5X35X71 |
| 12 | K115300400 | HSS LH7° HAND RM | 4X4X38X76 |
| 13 | K115300450 | HSS LH7° HAND RM | 4.5X4.5X41X81 |
| 14 | K115300460 | HSS LH7° HAND RM | 4.6X4.6X41X81 |
| 15 | K115300470 | HSS LH7° HAND RM | 4.7X4.7X41X81 |
| 16 | K115300500 | HSS LH7° HAND RM | 5X5X44X87 |
| 17 | K115300550 | HSS LH7° HAND RM | 5.5X5.5X47X93 |
| 18 | K115300600 | HSS LH7° HAND RM | 6X6X47X93 |
| 19 | K115300650 | HSS LH7° HAND RM | 6.5X6.5X50X100 |
| 20 | K115300700 | HSS LH7° HAND RM | 7X7X54X107 |
| 21 | K115300750 | HSS LH7° HAND RM | 7.5X7.5X54X107 |
| 22 | K115300790 | HSS LH7° HAND RM | 7.9X7.9X58X115 |
| 23 | K115300800 | HSS LH7° HAND RM | 8X8X58X115 |
| 24 | K115300850 | HSS LH7° HAND RM | 8.5X8.5X58X115 |
| 25 | K115300900 | HSS LH7° HAND RM | 9X9X62X124 |
| 26 | K115300950 | HSS LH7° HAND RM | 9.5X9.5X62X124 |
| 27 | K115301000 | HSS LH7° HAND RM | 10X10X66X133 |
| 28 | K115301010 | HSS LH7° HAND RM | 10.1X10.1X66X133 |
| 29 | K115301050 | HSS LH7° HAND RM | 10.5X10.5X66X133 |
| 30 | K115301100 | HSS LH7° HAND RM | 11X11X71X142 |
| 31 | K115301150 | HSS LH7° HAND RM | 11.5X11.5X71X142 |
| 32 | K115301200 | HSS LH7° HAND RM | 12X12X76X152 |
| 33 | K115301250 | HSS LH7° HAND RM | 12.5X12.5X76X152 |
| 34 | K115301300 | HSS LH7° HAND RM | 13X13X76X152 |
| 35 | K115301350 | HSS LH7° HAND RM | 13.5X13.5X81X163 |
| 36 | K115301400 | HSS LH7° HAND RM | 14X14X81X163 |
| 37 | K115301500 | HSS LH7° HAND RM | 15X15X81X163 |
| 38 | K115301550 | HSS LH7° HAND RM | 15.5X15.5X87X175 |
| 39 | K115301600 | HSS LH7° HAND RM | 16X16X87X175 |
| 40 | K115301700 | HSS LH7° HAND RM | 17X17X87X175 |
| 41 | K115301800 | HSS LH7° HAND RM | 18X18X93X188 |
| 42 | K115301900 | HSS LH7° HAND RM | 19X19X93X188 |
| 43 | K115302000 | HSS LH7° HAND RM | 20X20X100X201 |
| 44 | K115302100 | HSS LH7° HAND RM | 21X21X100X201 |
| 45 | K115302200 | HSS LH7° HAND RM | 22X22X107X215 |
| 46 | K115302250 | HSS LH7° HAND RM | 22.5X107X215 |
| 47 | K115302300 | HSS LH7° HAND RM | 23X23X107X215 |
| 48 | K115302400 | HSS LH7° HAND RM | 24X24X115X231 |
| 49 | K115302500 | HSS LH7° HAND RM | 25X25X115X231 |
| 50 | K115302600 | HSS LH7° HAND RM | 26X26X115X231 |
| 51 | K115302700 | HSS LH7° HAND RM | 27X27X124X247 |
| 52 | K115302800 | HSS LH7° HAND RM | 28X28X124X247 |
| 53 | K115302900 | HSS LH7° HAND RM | 29X29X124X247 |
| 54 | K115303000 | HSS LH7° HAND RM | 30X30X124X247 |
| 55 | K115303100 | HSS LH7° HAND RM | 31X31X133X265 |
| 56 | K115303200 | HSS LH7° HAND RM | 32X32X133X265 |
| 57 | K115303300 | HSS LH7° HAND RM | 33X33X133X265 |
| 58 | K115303400 | HSS LH7° HAND RM | 34X34X142X284 |
| 59 | K115303500 | HSS LH7° HAND RM | 35X35X142X284 |
| 60 | K115303600 | HSS LH7° HAND RM | 36X36X142X284 |
| 61 | K115303700 | HSS LH7° HAND RM | 37X37X142X284 |
| 62 | K115303800 | HSS LH7° HAND RM | 38X38X152X305 |
| 63 | K115303810 | HSS LH7° HAND RM | 38.1X38.1X152X305 |
| 64 | K115303900 | HSS LH7° HAND RM | 39X39X152X305 |
| 65 | K115304000 | HSS LH7° HAND RM | 40X40X152X305 |
| 66 | K115304100 | HSS LH7° HAND RM | 41X41X152X305 |
| 67 | K115304200 | HSS LH7° HAND RM | 42X42X152X305 |
| 68 | K115304300 | HSS LH7° HAND RM | 43X43X163X326 |
| 69 | K115304400 | HSS LH7° HAND RM | 44X44X163X326 |
| 70 | K115304500 | HSS LH7° HAND RM | 45X45X163X326 |
| 71 | K115304600 | HSS LH7° HAND RM | 46X46X163X326 |
| 72 | K115304700 | HSS LH7° HAND RM | 47X47X163X326 |
| 73 | K115304800 | HSS LH7° HAND RM | 48X48X174X347 |
| 74 | K115304900 | HSS LH7° HAND RM | 49X49X174X347 |
| 75 | K115305200 | HSS LH7° HAND RM | 52X52X174X347 |
| 76 | K115306000 | HSS LH7° HAND RM | 60X60X184X367 |
