MŨI DOA MÁY THẲNG YG- SERIE K2101

Nhóm sản phẩm: Mũi doa YG-1

5
Giá: Liên hệ
0.000 VNĐ
Số lượng:
Giới thiệu sản phẩm

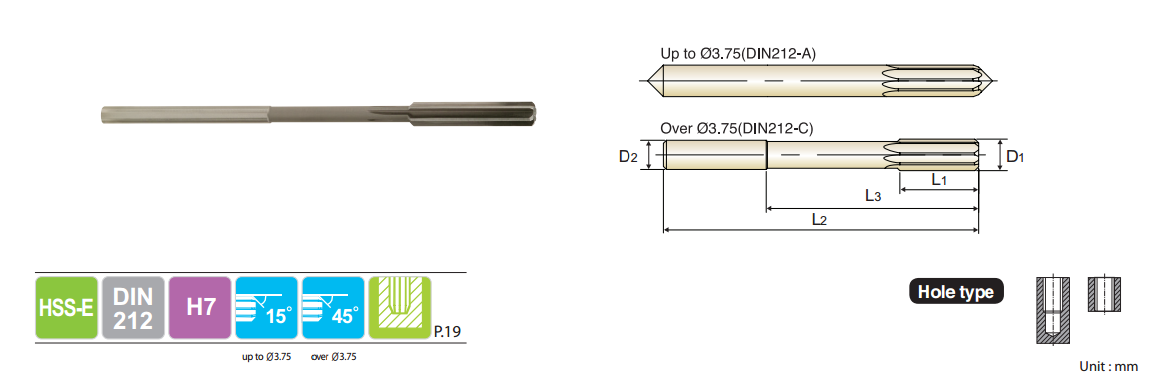

▶O.D. Tolerances : DIN 1420 for H7
▶Shank Diameter Tolerances : h8
▶Straight Flute / Right Hand Cut
▶Chamfer Angle - Up to Ø3.75 : 15° - Over Ø3.75 : 45
Thêm vào giỏ hàng
Mô tả sản phẩm

Bạn có thể tải tài liệu Tại Đây



STT  MÃ HÀNG MIÊU TẢ KÍCH THƯỚC
1
K210100200
 HSS-E STR CHUCKING RM 2X2X11X49
2 K210100210 HSS-E STR CHUCKING RM 2.1X2.1X11X49
3 K210100220 HSS-E STR CHUCKING RM 2.2X2.2X12X53
4 K210100230 HSS-E STR CHUCKING RM 2.3X2.3X12X53
5 K210100240 HSS-E STR CHUCKING RM 2.4X2.4X14X57
6 K210100250 HSS-E STR CHUCKING RM 2.5X2.5X14X57
7 K210100260 HSS-E STR CHUCKING RM 2.6X2.6X14X57
8 K210100270 HSS-E STR CHUCKING RM 2.7X2.7X15X61
9 K210100280 HSS-E STR CHUCKING RM 2.8X2.8X15X61
10 K210100290 HSS-E STR CHUCKING RM 2.9X2.9X15X61
11 K210100300 HSS-E STR CHUCKING RM 3X3X15X61
12 K210100310 HSS-E STR CHUCKING RM 3.1X3.1X16X65
13 K210100320 HSS-E STR CHUCKING RM 3.2X3.2X16X65
14 K210100330 HSS-E STR CHUCKING RM 3.3X3.3X16X65
15 K210100340 HSS-E STR CHUCKING RM 3.4X3.4X18X70
16 K210100350 HSS-E STR CHUCKING RM 3.5X3.5X18X70
17 K210100360 HSS-E STR CHUCKING RM 3.6X3.6X18X70
18 K210100370 HSS-E STR CHUCKING RM 3.7X3.7X18X70
19 K210100380 HSS-E STR CHUCKING RM 3.8X4X19X75
20 K210100390 HSS-E STR CHUCKING RM 3.9X4X19X75
21 K210100400 HSS-E STR CHUCKING RM 4X4X19X75
22 K210100410 HSS-E STR CHUCKING RM 4.1X4X19X75
23 K210100420 HSS-E STR CHUCKING RM 4.2X4X19X75
24 K210100430 HSS-E STR CHUCKING RM 4.3X4.5X21X80
25 K210100440 HSS-E STR CHUCKING RM 4.4X4.5X21X80
26 K210100450 HSS-E STR CHUCKING RM 4.5X4.5X21X80
27 K210100460 HSS-E STR CHUCKING RM 4.6X4.5X21X80
28 K210100470 HSS-E STR CHUCKING RM 4.7X4.5X21X80
29 K210100480 HSS-E STR CHUCKING RM 4.8X5X23X86
30 K210100490 HSS-E STR CHUCKING RM 4.9X5X23X86
31 K210100500 HSS-E STR CHUCKING RM 5X5X23X86
32 K210100510 HSS-E STR CHUCKING RM 5.1X5X23X86
33 K210100530 HSS-E STR CHUCKING RM 5.3X5X23X86
34 K210100540 HSS-E STR CHUCKING RM 5.4X5.6X26X93
35 K210100550 HSS-E STR CHUCKING RM 5.5X5.6X26X93
36 K210100560 HSS-E STR CHUCKING RM 5.6X5.6X26X93
37 K210100570 HSS-E STR CHUCKING RM 5.7X5.6X26X93
38 K210100580 HSS-E STR CHUCKING RM 5.8X5.6X26X93
39 K210100590 HSS-E STR CHUCKING RM 5.9X5.6X26X93
40 K210100600 HSS-E STR CHUCKING RM 6X5.6X26X93
41 K210100610 HSS-E STR CHUCKING RM 6.1X6.3X28X101
42 K210100620 HSS-E STR CHUCKING RM 6.2X6.3X28X101
43 K210100630 HSS-E STR CHUCKING RM 6.3X6.3X28X101
44 K210100635 HSS-E STR CHUCKING RM 6.35X6.3X28X101
45 K210100640 HSS-E STR CHUCKING RM 6.4X6.3X28X101
46 K210100650 HSS-E STR CHUCKING RM 6.5X6.3X28X101
47 K210100660 HSS-E STR CHUCKING RM 6.6X6.3X28X101
48 K210100670 HSS-E STR CHUCKING RM 6.7X6.3X28X101
49 K210100680 HSS-E STR CHUCKING RM 6.8X7.1X31X109
50 K210100690 HSS-E STR CHUCKING RM 6.9X7.1X31X109
51 K210100700 HSS-E STR CHUCKING RM 7X7.1X31X109
52 K210100710 HSS-E STR CHUCKING RM 7.1X7.1X31X109
53 K210100720 HSS-E STR CHUCKING RM 7.2X7.1X31X109
54 K210100730 HSS-E STR CHUCKING RM 7.3X7.1X31X109
55 K210100740 HSS-E STR CHUCKING RM 7.4X7.1X31X109
56 K210100750 HSS-E STR CHUCKING RM 7.5X7.1X31X109
57 K210100760 HSS-E STR CHUCKING RM 7.6X8X33X117
58 K210100770 HSS-E STR CHUCKING RM 7.7X8X33X117
59 K210100780 HSS-E STR CHUCKING RM 7.8X8X33X117
60 K210100790 HSS-E STR CHUCKING RM 7.9X8X33X117
61 K210100800 HSS-E STR CHUCKING RM 8X8X33X117
62 K210100810 HSS-E STR CHUCKING RM 8.1X8X33X117
63 K210100820 HSS-E STR CHUCKING RM 8.2X8X33X117
64 K210100830 HSS-E STR CHUCKING RM 8.3X8X33X117
65 K210100840 HSS-E STR CHUCKING RM 8.4X8X33X117
66 K210100850 HSS-E STR CHUCKING RM 8.5X8X33X117
67 K210100860 HSS-E STR CHUCKING RM 8.6X9X36X125
68 K210100870 HSS-E STR CHUCKING RM 8.7X9X36X125
69 K210100880 HSS-E STR CHUCKING RM 8.8X9X36X125
70 K210100890 HSS-E STR CHUCKING RM 8.9X9X36X125
71 K210100900 HSS-E STR CHUCKING RM 9X9X36X125
72 K210100910 HSS-E STR CHUCKING RM 9.1X9X36X125
73 K210100920 HSS-E STR CHUCKING RM 9.2X9X36X125
74 K210100930 HSS-E STR CHUCKING RM 9.3X9X36X125
75 K210100940 HSS-E STR CHUCKING RM 9.4X9X36X125
76 K210100950 HSS-E STR CHUCKING RM 9.5X9X36X125
77 K210100960 HSS-E STR CHUCKING RM 9.6X10X38X133
78 K210100970 HSS-E STR CHUCKING RM 9.7X10X38X133
79 K210100980 HSS-E STR CHUCKING RM 9.8X10X38X133
80 K210100990 HSS-E STR CHUCKING RM 9.9X10X38X133
81 K210101000 HSS-E STR CHUCKING RM 10X10X38X133
82 K210101020 HSS-E STR CHUCKING RM 10.2X10X38X133
83 K210101030 HSS-E STR CHUCKING RM 10.3X10X38X133
84 K210101040 HSS-E STR CHUCKING RM 10.4X10X38X133
85 K210101050 HSS-E STR CHUCKING RM 10.5X10X38X133
86 K210101060 HSS-E STR CHUCKING RM 10.6X10X38X133
87 K210101070 HSS-E STR CHUCKING RM 10.7X10X41X142
88 K210101080 HSS-E STR CHUCKING RM 10.8X10X41X142
89 K210101090 HSS-E STR CHUCKING RM 10.9X10X41X142
90 K210101100 HSS-E STR CHUCKING RM 11X10X41X142
91 K210101110 HSS-E STR CHUCKING RM 11.1X10X41X142
92 K210101120 HSS-E STR CHUCKING RM 11.2X10X41X142
93 K210101130 HSS-E STR CHUCKING RM 11.3X10X41X142
94 K210101140 HSS-E STR CHUCKING RM 11.4X10X41X142
95 K210101150 HSS-E STR CHUCKING RM 11.5X10X41X142
96 K210101160 HSS-E STR CHUCKING RM 11.6X10X41X142
97 K210101170 HSS-E STR CHUCKING RM 11.7X10X41X142
98 K210101180 HSS-E STR CHUCKING RM 11.8X10X41X142
99 K210101190 HSS-E STR CHUCKING RM 11.9X10X44X151
100 K210101200 HSS-E STR CHUCKING RM 12X10X44X151
101 K210101210 HSS-E STR CHUCKING RM 12.1X10X44X151
102 K210101220 HSS-E STR CHUCKING RM 12.2X10X44X151
103 K210101230 HSS-E STR CHUCKING RM 12.3X10X44X151
104 K210101240 HSS-E STR CHUCKING RM 12.4X10X44X151
105 K210101250 HSS-E STR CHUCKING RM 12.5X10X44X151
106 K210101260 HSS-E STR CHUCKING RM 12.6X10X44X151
107 K210101270 HSS-E STR CHUCKING RM 12.7X10X44X151
108 K210101280 HSS-E STR CHUCKING RM 12.8X10X44X151
109 K210101290 HSS-E STR CHUCKING RM 12.9X10X44X151
110 K210101300 HSS-E STR CHUCKING RM 13X10X44X151
111 K210101350 HSS-E STR CHUCKING RM 13.5X12.5X47X160
112 K210101400 HSS-E STR CHUCKING RM 14X12.5X47X160
113 K210101450 HSS-E STR CHUCKING RM 14.5X12.5X50X162
114 K210101500 HSS-E STR CHUCKING RM 15X12.5X50X162
115 K210101550 HSS-E STR CHUCKING RM 15.5X12.5X52X170
116 K210101600 HSS-E STR CHUCKING RM 16X12.5X52X170
117 K210101650 HSS-E STR CHUCKING RM 16.5X14X54X175
118 K210101700 HSS-E STR CHUCKING RM 17X14X54X175
119 K210101750 HSS-E STR CHUCKING RM 17.5X14X56X182
120 K210101800 HSS-E STR CHUCKING RM 18X14X56X182
121 K210101850 HSS-E STR CHUCKING RM 18.5X16X58X189
122 K210101900 HSS-E STR CHUCKING RM 19X16X58X189
123 K210101950 HSS-E STR CHUCKING RM 19.5X16X60X195
124 K210102000 HSS-E STR CHUCKING RM 20X16X60X195
