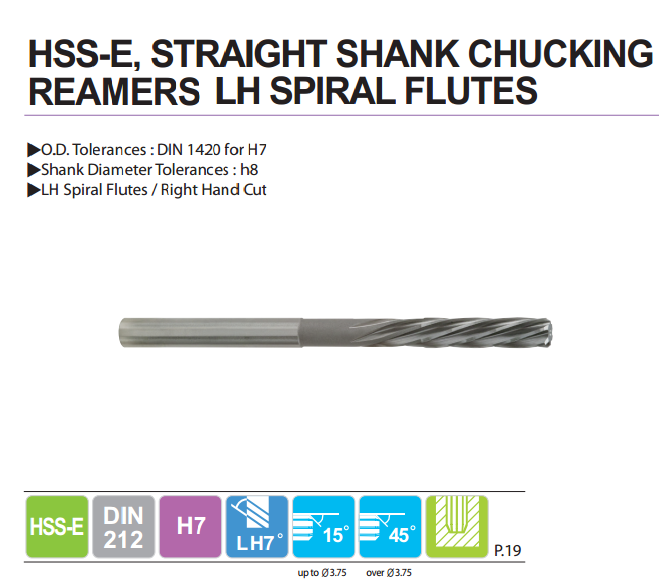

MŨI DOA XOẮN YG - SERIE K2111
Nhóm sản phẩm: Mũi doa YG-1
5
Giá: Liên hệ
0.000 VNĐ
Reamer :
Số lượng:
Giới thiệu sản phẩm

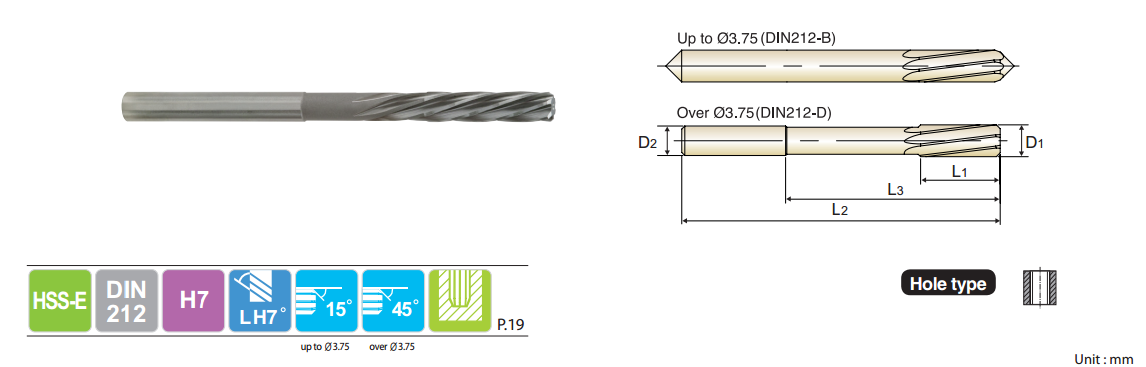

▶O.D. Tolerances : DIN 1420 for H7
▶Shank Diameter Tolerances : h8
▶LH Spiral Flutes / Right Hand Cut
▶Chamfer Angle - Up to Ø3.75 : 15°
- Over Ø3.75 : 45°
▶O.D. Tolerances : DIN 1420 for H7
▶Shank Diameter Tolerances : h8
▶LH Spiral Flutes / Right Hand Cut
▶Chamfer Angle - Up to Ø3.75 : 15°
- Over Ø3.75 : 45°
.png)
Bạn có thể tải tài liệu Tại Đây
| STT | MÃ HÀNG | MIÊU TẢ | KÍCH THƯỚC |
| 1 | K211100200 | HSS-E SS SP.Chucking Reamer | 2X2X11X49 |
| 2 | K211100210 | HSS-E SS SP.Chucking Reamer | 2.1X2.1X11X49 |
| 3 | K211100220 | HSS-E SS SP.Chucking Reamer | 2.2X2.2X12X53 |
| 4 | K211100230 | HSS-E SS SP.Chucking Reamer | 2.3X2.3X12X53 |
| 5 | K211100240 | HSS-E SS SP.Chucking Reamer | 2.4X2.4X14X57 |
| 6 | K211100250 | HSS-E SS SP.Chucking Reamer | 2.5X2.5X14X57 |
| 7 | K211100260 | HSS-E SS SP.Chucking Reamer | 2.6X2.6X14X57 |
| 8 | K211100300 | HSS-E SS SP.Chucking Reamer | 3X3X15X61 |
| 9 | K211100350 | HSS-E SS SP.Chucking Reamer | 3.5X3.5X18X70 |
| 10 | K211100400 | HSS-E SS SP.Chucking Reamer | 4X4X19X75 |
| 11 | K211100420 | HSS-E SS SP.Chucking Reamer | 4.2X4X19X75 |
| 12 | K211100450 | HSS-E SS SP.Chucking Reamer | 4.5X4.5X21X80 |
| 13 | K211100500 | HSS-E SS SP.Chucking Reamer | 5X5X23X86 |
| 14 | K211100520 | HSS-E SS SP.Chucking Reamer | 5.2X5X23X86 |
| 15 | K211100550 | HSS-E SS SP.Chucking Reamer | 5.5X5.6X26X93 |
| 16 | K211100600 | HSS-E SS SP.Chucking Reamer | 6X5.6X26X93 |
| 17 | K211100630 | HSS-E SS SP.Chucking Reamer | 6.3X6.3X28X101 |
| 18 | K211100640 | HSS-E SS SP.Chucking Reamer | 6.4X6.3X28X101 |
| 19 | K211100650 | HSS-E SS SP.Chucking Reamer | 6.5X6.3X28X101 |
| 20 | K211100700 | HSS-E SS SP.Chucking Reamer | 7X7.1X31X109 |
| 21 | K211100750 | HSS-E SS SP.Chucking Reamer | 7.5X7.1X31X109 |
| 22 | K211100800 | HSS-E SS SP.Chucking Reamer | 8X8X33X117 |
| 23 | K211100810 | HSS-E SS SP.Chucking Reamer | 8.1X8X33X117 |
| 24 | K211100850 | HSS-E SS SP.Chucking Reamer | 8.5X8X33X117 |
| 25 | K211100900 | HSS-E SS SP.Chucking Reamer | 9X9X36X125 |
| 26 | K211100950 | HSS-E SS SP.Chucking Reamer | 9.5X9X36X125 |
| 27 | K211101000 | HSS-E SS SP.Chucking Reamer | 10X10X38X133 |
| 28 | K211101010 | HSS-E SS SP.Chucking Reamer | 10.1X10X38X133 |
| 29 | K211101050 | HSS-E SS SP.Chucking Reamer | 10.5X10X38X133 |
| 30 | K211101100 | HSS-E SS SP.Chucking Reamer | 11X10X41X142 |
| 31 | K211101120 | HSS-E SS SP.Chucking Reamer | 11.2X10X41X142 |
| 32 | K211101170 | HSS-E SS SP.Chucking Reamer | 11.7X10X41X142 |
| 33 | K211101200 | HSS-E SS SP.Chucking Reamer | 12X10X44X151 |
| 34 | K211101260 | HSS-E SS SP.Chucking Reamer | 12.6X10X44X151 |
| 35 | K211101270 | HSS-E SS SP.Chucking Reamer | 12.7X10X44X151 |
| 36 | K211101300 | HSS-E SS SP.Chucking Reamer | 13X10X44X151 |
| 37 | K211101400 | HSS-E SS SP.Chucking Reamer | 14X12.5X47X160 |
| 38 | K211101500 | HSS-E SS SP.Chucking Reamer | 15X12.5X50X162 |
| 39 | K211101600 | HSS-E SS SP.Chucking Reamer | 16X12.5X52X170 |
| 40 | K211101700 | HSS-E SS SP.Chucking Reamer | 17X14X54X175 |
| 41 | K211101800 | HSS-E SS SP.Chucking Reamer | 18X14X56X182 |
| 42 | K211101900 | HSS-E SS SP.Chucking Reamer | 19X16X58X189 |
| 43 | K211102000 | HSS-E SS SP.Chucking Reamer | 20X16X60X195 |
Có thể bạn thích
Mũi doa hợp kim thẳng K4101
Liên hệ

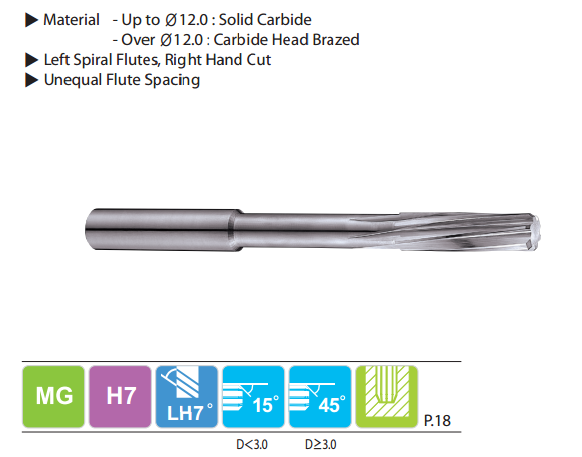

Mũi doa hợp kim xoắn K4111
Liên hệ
MŨI DOA TAT XOẮN YG- SERIE K1153
Liên hệ

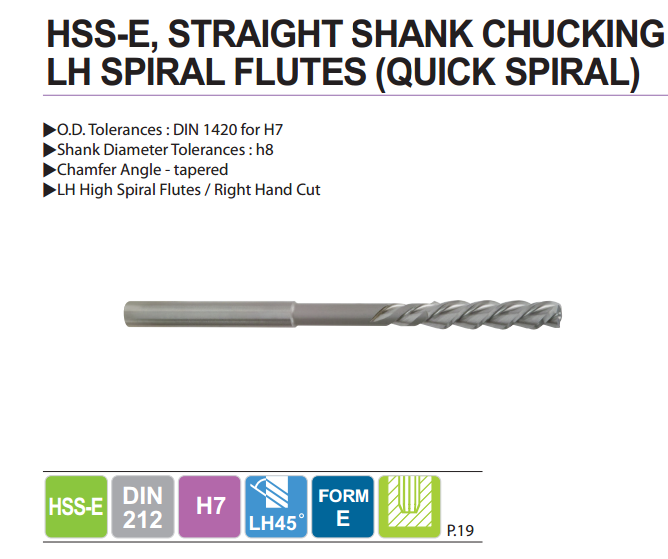

MŨI DOA XOẮN YG- SERIE K2121
