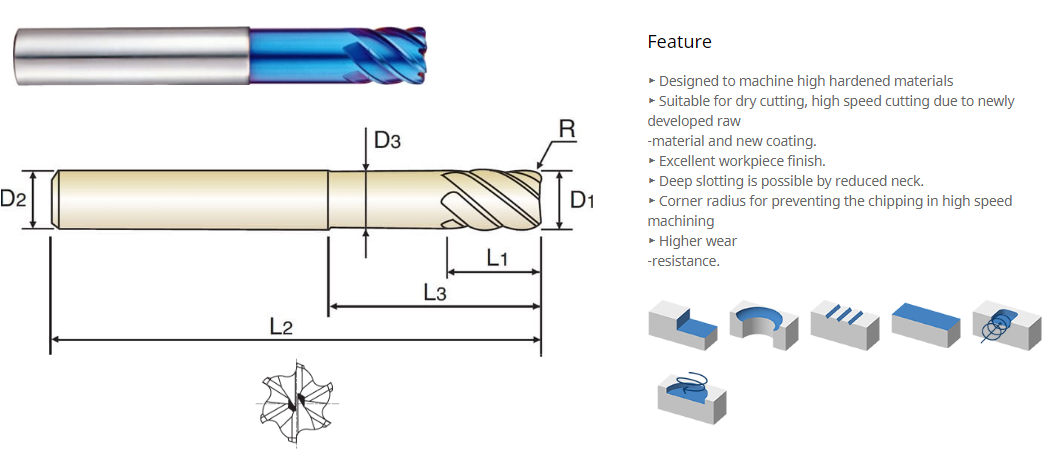

EDP No.
|
R
|
D1
|
D2
|
L1
|
L3
|
L2
|
Mill Dia. Tolerance
|
Shank Dia.Tolerance
|
No. of Flute
|
Taper Angle
|
| G8A39060 | R0.50 | 6 | 6 | 6 | 14 | 50 | 0~-0.020 | h5 | 6 | |
| G8A39060 | R0.50 | 6 | 6 | 6 | 14 | 50 | 0~-0.020 | h5 | 6 | |
| G8A39080 | R0.50 | 8 | 8 | 8 | 24 | 60 | 0~-0.020 | h5 | 6 | |
| G8A39080 | R0.50 | 8 | 8 | 8 | 24 | 60 | 0~-0.020 | h5 | 6 | |
| G8A39100 | R1.0 | 10 | 10 | 10 | 30 | 70 | 0~-0.020 | h5 | 6 | |
| G8A39100 | R1.0 | 10 | 10 | 10 | 30 | 70 | 0~-0.020 | h5 | 6 | |
| G8A39120 | R1.0 | 12 | 12 | 12 | 30 | 75 | 0~-0.020 | h5 | 6 | |
| G8A39120 | R1.0 | 12 | 12 | 12 | 30 | 75 | 0~-0.020 | h5 | 6 | |
| G8A39160 | R1.0 | 16 | 16 | 32 | - | 130 | 0~-0.020 | h5 | 6 | |
| G8A39160 | R1.0 | 16 | 16 | 32 | 130 | 0~-0.020 | h5 | 6 | ||
| G8A39200 | R1.0 | 20 | 20 | 38 | - | 140 | 0~-0.020 | h5 | 6 | |
| G8A39200 | R1.0 | 20 | 20 | 38 | 140 | 0~-0.020 | h5 | 6 | ||
| G8A39901 | R0.50 | 6 | 6 | 13 | - | 70 | 0~-0.020 | h5 | 6 | |
| G8A39901 | R0.50 | 6 | 6 | 13 | 70 | 0~-0.020 | h5 | 6 | ||
| G8A39902 | R0.50 | 8 | 8 | 19 | - | 90 | 0~-0.020 | h5 | 6 | |
| G8A39902 | R0.50 | 8 | 8 | 19 | 90 | 0~-0.020 | h5 | 6 | ||
| G8A39903 | R0.50 | 10 | 10 | 22 | - | 100 | 0~-0.020 | h5 | 6 | |
| G8A39903 | R0.50 | 10 | 10 | 22 | 100 | 0~-0.020 | h5 | 6 | ||
| G8A39904 | R1.0 | 10 | 10 | 22 | - | 100 | 0~-0.020 | h5 | 6 | |
| G8A39904 | R1.0 | 10 | 10 | 22 | 100 | 0~-0.020 | h5 | 6 | ||
| G8A39905 | R0.50 | 12 | 12 | 26 | - | 110 | 0~-0.020 | h5 | 6 | |
| G8A39905 | R0.50 | 12 | 12 | 26 | 110 | 0~-0.020 | h5 | 6 | ||
| G8A39906 | R1.0 | 12 | 12 | 26 | - | 110 | 0~-0.020 | h5 | 6 | |
| G8A39906 | R1.0 | 12 | 12 | 26 | 110 | 0~-0.020 | h5 | 6 | ||
| G8A39907 | R1.5 | 16 | 16 | 32 | - | 130 | 0~-0.020 | h5 | 6 | |
| G8A39907 | R1.5 | 16 | 16 | 32 | 130 | 0~-0.020 | h5 | 6 | ||
| G8A39908 | R1.5 | 20 | 20 | 38 | - | 140 | 0~-0.020 | h5 | 6 | |
| G8A39908 | R1.5 | 20 | 20 | 38 | 140 | 0~-0.020 | h5 | 6 | ||
| G8A39909 | R2.0 | 20 | 20 | 38 | - | 140 | 0~-0.020 | h5 | 6 | |
| G8A39909 | R2.0 | 20 | 20 | 38 | 140 | 0~-0.020 | h5 | 6 | ||
| G8A39910 | R0.50 | 6 | 6 | 26 | - | 70 | 0~-0.020 | h5 | 6 | |
| G8A39910 | R0.50 | 6 | 6 | 26 | 70 | 0~-0.020 | h5 | 6 | ||
| G8A39911 | R0.50 | 8 | 8 | 36 | - | 90 | 0~-0.020 | h5 | 6 | |
| G8A39911 | R0.50 | 8 | 8 | 36 | 90 | 0~-0.020 | h5 | 6 | ||
| G8A39912 | R1.0 | 10 | 10 | 46 | - | 100 | 0~-0.020 | h5 | 6 | |
| G8A39912 | R1.0 | 10 | 10 | 46 | 100 | 0~-0.020 | h5 | 6 | ||
| G8A39913 | R1.0 | 12 | 12 | 56 | - | 110 | 0~-0.020 | h5 | 6 | |
| G8A39913 | R1.0 | 12 | 12 | 56 | 110 | 0~-0.020 | h5 | 6 | ||
| G8A39914 | R1.5 | 16 | 16 | 66 | - | 130 | 0~-0.020 | h5 | 6 | |
| G8A39914 | R1.5 | 16 | 16 | 66 | 130 | 0~-0.020 | h5 | 6 | ||
| G8A39915 | R2.0 | 20 | 20 | 76 | - | 140 | 0~-0.020 | h5 | 6 | |
| G8A39915 | R2.0 | 20 | 20 | 76 | 140 | 0~-0.020 | h5 | 6 | ||
| G8A39916 | R0.25 | 6 | 6 | 6 | 14 | 50 | 0~-0.020 | h5 | 6 | |
| G8A39916 | R0.25 | 6 | 6 | 6 | 14 | 50 | 0~-0.020 | h5 | 6 |
